Features

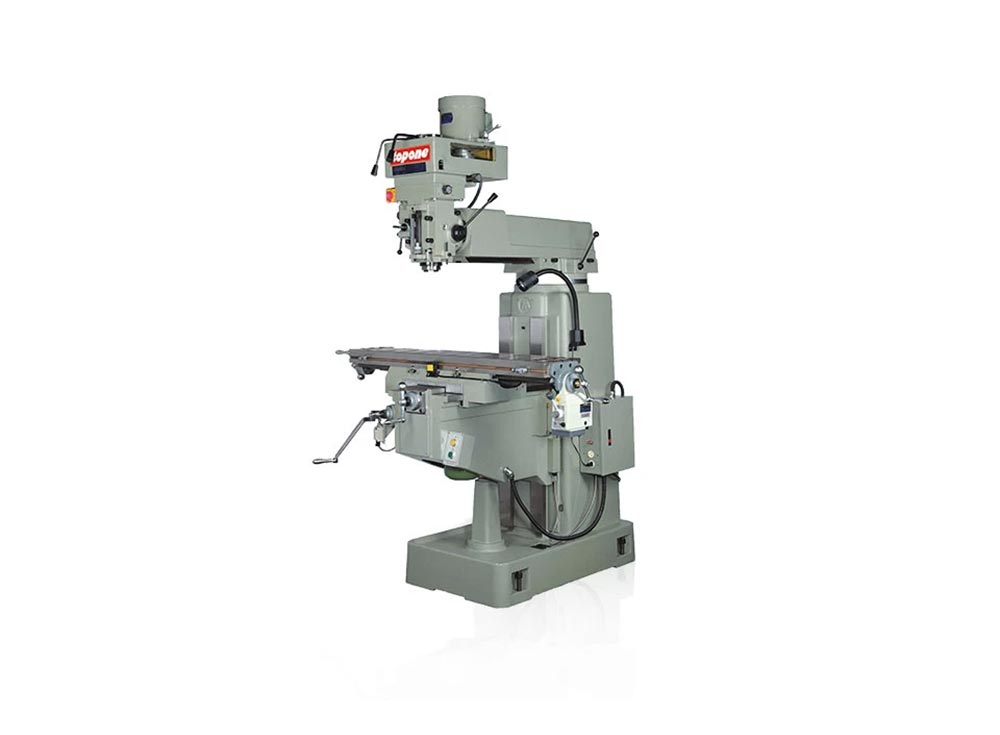

Heavy-Duty Model with High Column
Engineered for heavy-duty applications, the TOM-5K features a high column design, ensuring robust and reliable performance in demanding machining tasks.
Step Speed Head Technology
Incorporates innovative Step Speed Head technology, providing precise control and versatility in speed adjustments for various machining operations.
Spacious Table
Showcasing a generous 50" x 10" table, the machine offers ample workspace for diverse machining tasks, accommodating various workpieces.
Powerful Motor
Driven by a potent 5HP motor, the machine delivers reliable and efficient performance, suitable for a broad spectrum of machining applications.
Powered Table Elevation
Features powered table elevation, facilitating convenient adjustments during machining operations.
Electric Control Box with Safety Switch
Equipped with an electric control box featuring a safety switch, ensuring secure and user-friendly operation of the machine.
Halogen Work Lamp
Enhanced with a halogen work lamp, providing effective illumination for precision work during machining processes.
Auto-Lubrication
Features an auto-lubrication system, ensuring optimal machine performance and longevity with automated lubrication.
Meehanite Castings
Crafted with precision Meehanite castings, the machine ensures exceptional stability and durability, forming a solid foundation for precise machining operations.
Hardened and Ground Ways
Both the cross slide way and table undergo meticulous hardening and grinding processes, enhancing wear resistance and ensuring a smooth and precise machining experience.
Quill with Chrome Hardening
The quill undergoes chrome hardening and grinding, ensuring durability and precision in various drilling operations.
High-Precision Spindle Bearings
Equipped with high-precision 7010 CP4 spindle bearings, the machine ensures smooth and accurate rotation, contributing to superior machining results.
Turcite-B Coating
The cross and longitudinal ways are coated with Turcite-B, extending their lifespan and minimizing friction for seamless movement.
Hardened and Ground Knee Slide Way
The knee slide way undergoes hardening and grinding, contributing to enhanced durability and precision in machine movement.
Specifications
| Model | TOM-5K |
Spindle |
|
| Spindle taper |
NST40 |
| Spindle Speeds |
70-3600 RPM (10 Speeds) |
| Quill diameter |
Ø105 mm (4.13") |
| Quill travel |
150 mm (6") |
| Quill feeds |
0.04 mm (0.0015") 0.08 mm (0.0030") 0.15 mm (0.0060") |
| Head tilt |
90° Right & Left |
| Spindle motor |
5HP |
Table |
|
| Table size |
1270 x 254 mm (50" x 10") |
| Longitudinal travel (X) |
620 mm (24.4") |
| Cross travel (Y) |
420 mm (16 1/2") |
| Vertical trave (Z) |
508 mm (20") |
| T-solt (width x trough number x pitch) |
16 mm x 3 x 65 mm |
RAM |
|
| Ram travel |
610 mm (24") |
| Machine weight |
2000 Kg (4400 Lb) |
| Machine dimension (L x W x H) |
2000 x 1700 x 2550 mm |
| Packing dimension |
1500 x 1650 x 2200 mm |
*Note:The machine specifications,dimensions and design characteristics are subject to change without prior notice.
Standard Accessories
- Auto-Lubrication
- Draw bar
- Tools & tool box
- Operation manual
- Way cover
- Electric control box
- Work lamp
- Power table elevation
Optional Accessories
- Clamping kit set
- 6" angle vise
- Horizontal and vertical rotary table
- Power feed (X, Y, Z-axis)
- R8 collet set
- NST #30 arbor & collet
- NST #40 arbor & collet
- Work lamp
- Collant system
- Chip pan
- Right angle attachment
- Electric control box and panel
- Powered table elevation
- Ball screw (X, Y-axis)
- Digital readout system
