Features

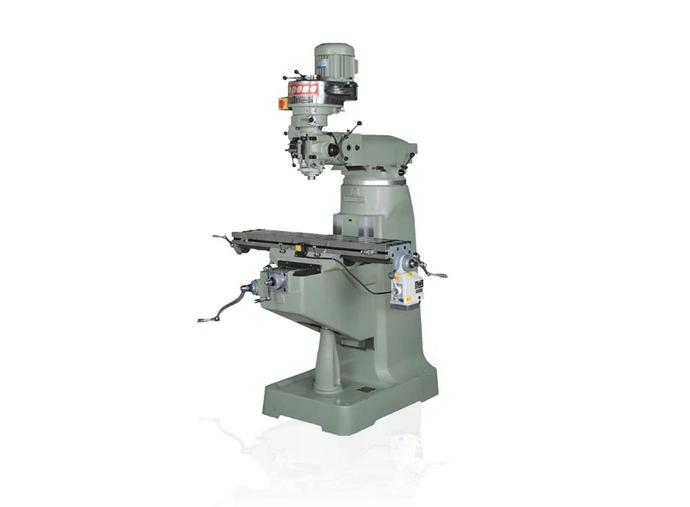

Step Speed Head Technology
The innovative Step Speed Head ensures precise control over machining operations, allowing for versatility in speed adjustments.
Spacious Table
With a generous 42" x 9" table size, it provides ample workspace for various machining tasks, accommodating diverse workpieces.
Powerful Motor
Driven by a robust 3HP motor, the machine delivers reliable and efficient performance, suitable for a range of machining applications.
Meehanite Castings
Crafted with Meehanite castings, the machine boasts exceptional stability and durability, ensuring a sturdy foundation for machining operations.
Hardened and Ground Ways
The cross slide way and table are hardened and ground, enhancing wear resistance and providing a smooth and precise machining experience.
Quill with Chrome Hardening
The quill undergoes chrome hardening and grinding, contributing to its durability and precision in various drilling operations.
High-Precision Spindle Bearings
Equipped with high-precision 7207 CP4 spindle bearings, ensuring smooth and accurate rotation for superior machining results.
Turcite-B Coating
The cross and longitudinal ways are coated with Turcite-B, enhancing their longevity and minimizing friction for smooth movement.
Specifications
| Model | TOM-2SG |
Spindle |
|
| Spindle taper |
R8 (NST30) |
| Spindle Speeds |
80-2720 RPM (8 Speeds standard) 160-5440 RPM (16 Speeds optional) |
| Quill diameter |
Ø85.725 mm (3.37") |
| Quill travel |
127 mm (5") |
| Quill feeds |
0.04 mm (0.0015") 0.08 mm (0.0030") 0.15 mm (0.0060") |
| Head tilt |
45° Forward & Back 90° Right & Left |
| Spindle motor |
3HP |
Table |
|
| Table size |
1067 x 230 mm (42" x 9") Standard 1244 x 230 mm (49" x 9") Optional |
| Longitudinal travel (X) |
610 mm (23") 762 mm (30") |
| Cross travel (Y) |
300 mm (12") |
| Vertical trave (Z) |
390 mm (15") |
| T-solt (width x trough number x pitch) |
16 mm x 3 x 64 mm |
RAM |
|
| Ram travel |
305 mm (12") |
| Machine weight |
1000 Kg (2200 Lb) |
| Machine dimension (L x W x H) |
1600 x 1450 x 2100 mm |
| Packing dimension |
1450 x 1450 x 1900 mm |
*Note:The machine specifications,dimensions and design characteristics are subject to change without prior notice.
Standard Accessories
- One shot lubrication
- Draw bar
- Tools & tool box
- Operation manual
Optional Accessories
- Clamping kit set
- 6" angle vise
- Horizontal and vertical rotary table
- Power feed (X, Y, Z-axis)
- R8 collet set
- NST #30 arbor & collet
- NST #40 arbor & collet
- Work lamp
- Collant system
- Chip pan
- Right angle attachment
- Electric control box and panel
- Powered table elevation
- Ball screw (X, Y-axis)
- Digital readout system
