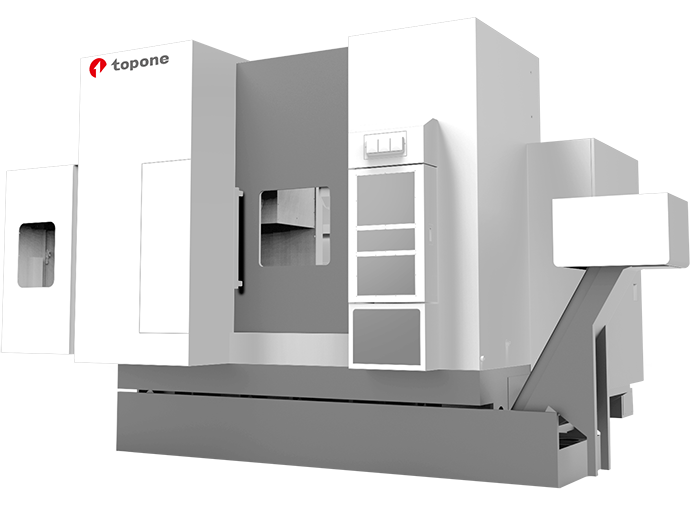

TM30

Multi-Tasking Turning Center
https://www.topone-m.com/web/image/product.template/31/image_1920?unique=425c4f3
  • Equipped with an integrated spindle for turning and milling, combined with a swing head design.
  • 4+1 axis machining capabilities.
  • Multifunctional turning and milling for high-precision and complex workpiece machining.
  • Multi-axis machining technology to enhance proessing efficiency and workpiece quality.

    This combination does not exist.

    Offering customized specifications for specific machining needs


    SpecificationsDirections

    Specifications

    Item
    Table C-Axis


    Chuck/Soft Jaw
    		inch
    		16"
    Rotational Speed
    		rpm
    		600
    Max. Load
    		kg
    		200
    Max. Worktable Load (C-Axis)
    		kg
    		200
    Max. Machining Diameter
    		mm
    		610
    Min. Setting Angle
    		deg.
    		0.001
    Indexing Accuracy
    		sec.
    		20
    Repeatability
    		sec.
    		4
    Travel


    X-Axis Travel
    		mm
    		762
    Y-Axis Travel
    		mm
    		400(±200)
    Z-Axis Travel
    		mm
    		460
    Spindle


    Spindle Taper

    		HSK-T63
    Spindle Speed
    		rpm
    		12000
    Central Coolant Supply
    		bar
    		20
    Spindle Lubrication

    		Grease Lubrication
    Motor Power
    		Kw(S1/S6-40%)
    		16/20.8
    Motor Torque
    		Nm(S1/S6-40%)
    		47.8/62.1
    B-Axis


    Rotation Speed
    		rpm
    		33.3
    Indexing Accuracy
    		sec.
    		20
    Repeatability
    		sec.
    		6
    Tilting Angles
    		deg.
    		±91
    Tools


    Magazine Type

    		Disc type
    Magazine capacity
    		tools
    		24
    Max.Tool Length
    		mm
    		250
    Max. Tool Diameter
    		mm
    		Φ100
    (without adjacent tools)


    Max. Tool Weight
    		kg
    		8
    Tool Exchange Time
    		sec.
    		3.27
    Feed


    X-axis Rapid Feed
    		m/min
    		12
    Y-axis Rapid Feed
    		m/min
    		12
    Z-axis Rapid Feed
    		m/min
    		12
    Motor


    X-axis (AM11-50)
    		kW
    		2.3
    Y-axis (AM8-40)
    		kW
    		1.7
    Z-axis (AM18-40)
    		kW
    		3.9
    Machine


    Power Requirement
    		KVA
    		100
    Voltage

    		Three-phase 380V
    Min./Max. Air Pressure
    		kg/cm²
    		5~6
    Airflow
    		NL
    		150
    Floor Space Requirement
    		mm
    		3855x2630
    Machine Height
    		mm
    		2723
    Machine Weight
    		kg
    		12000

    Standard Accessories

    • Syntec Control
    • Fully Enclosed Sheet Metal
    • Spindle Oil Cooler
    • C-Axis Oil Cooler
    • Portable Handwheel
    • Toolbox and Operation Manual
    • Signal Tower Light
    • Automatic Lubrication System
    • Spindle Air Blow
    • Leveling Screws and Blocks
    • Electrical Cabinet Heat Exchanger
    • Chip Conveyor
    • Hydraulic Unit
    More
    Close

    Optional Accessories

    • B-Axis Linear Encoder
    • X-Axis Linear Encoder
    • Y-Axis Linear Encoder
    • Z-Axis Linear Encoder
    • CNC Cooling System
    • Automatic Chuck
    • Workpiece Measuring Device
    More
    Close
