Features
Precision and Stability

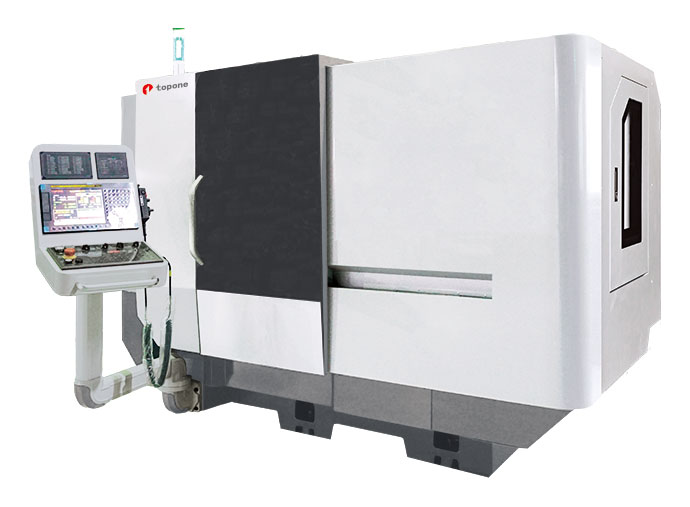

The TIG-150 CNC internal grinding machine guarantees the highest precision and stability in its operations.
Cooling System Enhancement
Equipped with an oil mist system and a magnetic filter system for pre-filtration, ensuring optimal performance.
Enclosed Sheet Metal Design
Features a fully enclosed sheet metal equipment design for safety and cleanliness in the workspace.
Automatic Grinding Cycle
Incorporates a fully automatic grinding cycle and a wheel dressing cycle program for efficient and streamlined operations.
High-Precision Ball Screws
The X-axis and Z-axis utilize high-precision pre-tension ball screws, enhancing accuracy in positioning.
Robust Machine Base
The main structure is designed for high rigidity, ensuring stable positioning accuracy and repeatability.
Versatile Wheel Spindle
Designed for grinding tube and shaft inner diameters, the wheel spindle features a constant torque high-frequency electric spindle.
Constant Linear Velocity (Vc) Grinding
The workhead incorporates a constant linear velocity grinding function, enhancing grinding efficiency.
User-Friendly Programming
Utilizes the Mars system for conversational programming, offering an easy-to-learn interface.
Specifications
| Model | TIG- 150 |
Grinding capacity |
|
| ID Grinding Range |
Ø4～Ø200mm |
| Max. Grinding Depth |
150mm |
| Max. Swing to Dresser |
Ø200mm
|
| Swing of Chick Cover |
Ø260mm |
| Chuck Type |
6" |
| Max. Loading |
30kg |
Workhead |
|
| Spindle Speed |
10~1000rpm |
| Swiveling Angle |
C.W. 15°~ C.CW. 5° |
| Servo Motor |
1.2kw |
| Spindle bore |
Ø52mm |
X--axis |
|
| Max. Travel |
200mm |
| Rapid Feeding Rate |
10m/min
|
| Min. Increment Infeed |
0.001mm |
| Servo Motor |
1.2kw |
Y-axis |
|
| Max. Travel |
400mm |
| Min. Travel |
100mm |
| Rapid Feeding Rate |
10m/min |
| Min. Increment Infeed |
0.001mm |
| Servo Motor |
1.2kw |
ID Wheelhead |
|
| Max Spindle Speed |
8000~30000rpm |
| Spindle Motor |
90mm |
| Servo Motor |
2 (2P) / 3 (2P)(OPT.)HP |
Machine Weight/Size |
|
| Net Weight |
3200kg |
| L x W x H |
2300 x 2200 x 2000mm |
*Note:The machine specifications,dimensions and design characteristics are subject to change without prior notice.
