Features
Travel Dimensions
Extensive travel capability with dimensions of 39.9" in the X-axis, 19.9" in the Y-axis, and 19.6" in the Z-axis.
Spindle Power
Driven by a robust 10HP motor, ensuring powerful performance.
Spindle Taper and Speed
Features CAT40/BT40 spindle taper, with a spindle speed of 8,000 rpm, providing versatility for various machining applications.
Precision Guide Way
Meticulously crafted, the guide way is both hardened and ground, complemented by Turcite-B coating for enhanced durability.
Precision Ball Screws
Equipped with double nut precision ball screws, ensuring high accuracy and prolonged operational life.
Main Frame Construction
The main frame is constructed from FC30 Meehanite casting, known for its superior dampening qualities. The casting undergoes annealing and stress relief processes for long-term reliability.
Box Ways Design
The Y and Z axes feature a box ways design, ensuring maximum rigidity and stability during machining operations. The X-axis incorporates a dovetail way for added precision.
Specifications

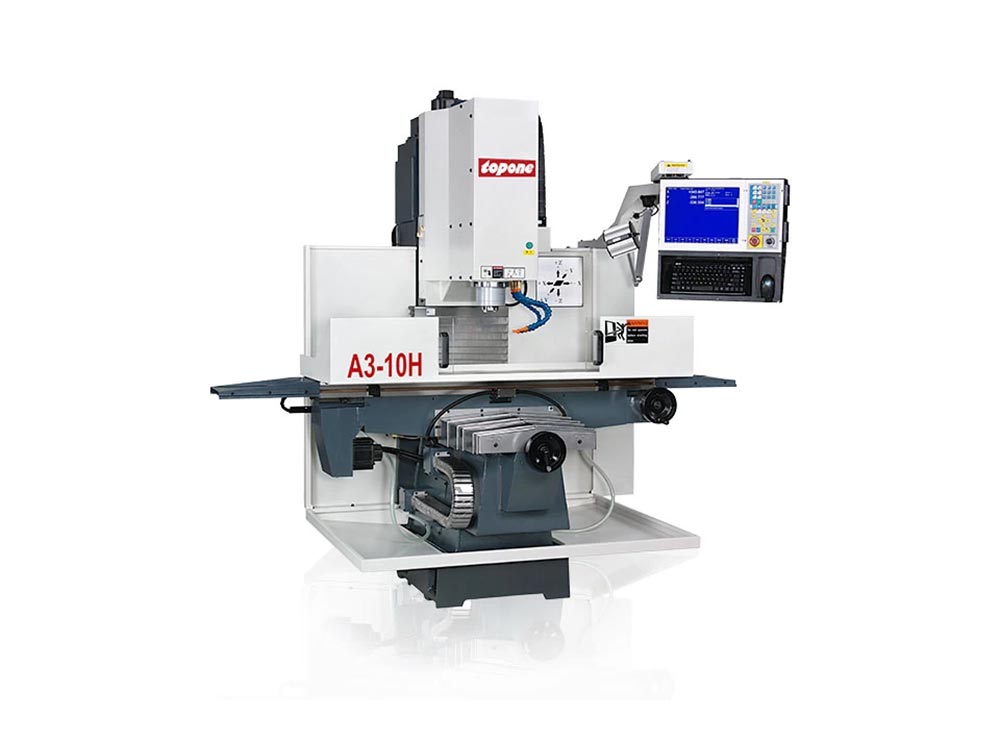

| Model | A3-5/7/10H |
|
| Spindle motor |
5HP / 7.5HP / 10HP |
|
| Table |
13" x 60" |
|
| X axis Travel |
39.37" |
|
| Y axis Travel |
19.68" |
|
| Z axis Travel |
25.19" |
|
| Spindle taper |
CAT40/BT40 |
|
| Quill diameter |
- |
|
| Quill travel |
- |
|
| Spindle rpm (Lo) |
8000 RPM |
|
| Spindle rpm (Hi) |
8000 RPM |
|
| Table load capacity |
1100 Lb |
|
| T-solt (W x N) |
0.62" x 3 x 2.55" |
|
| Spindle nose to table top |
3.93" ~ 29.13" |
|
| Saddle size |
47.2" |
|
| Machine weight |
4600 Lb |
|
*Note:The machine specifications,dimensions and design characteristics are subject to change without prior notice.
